SketchUp Test

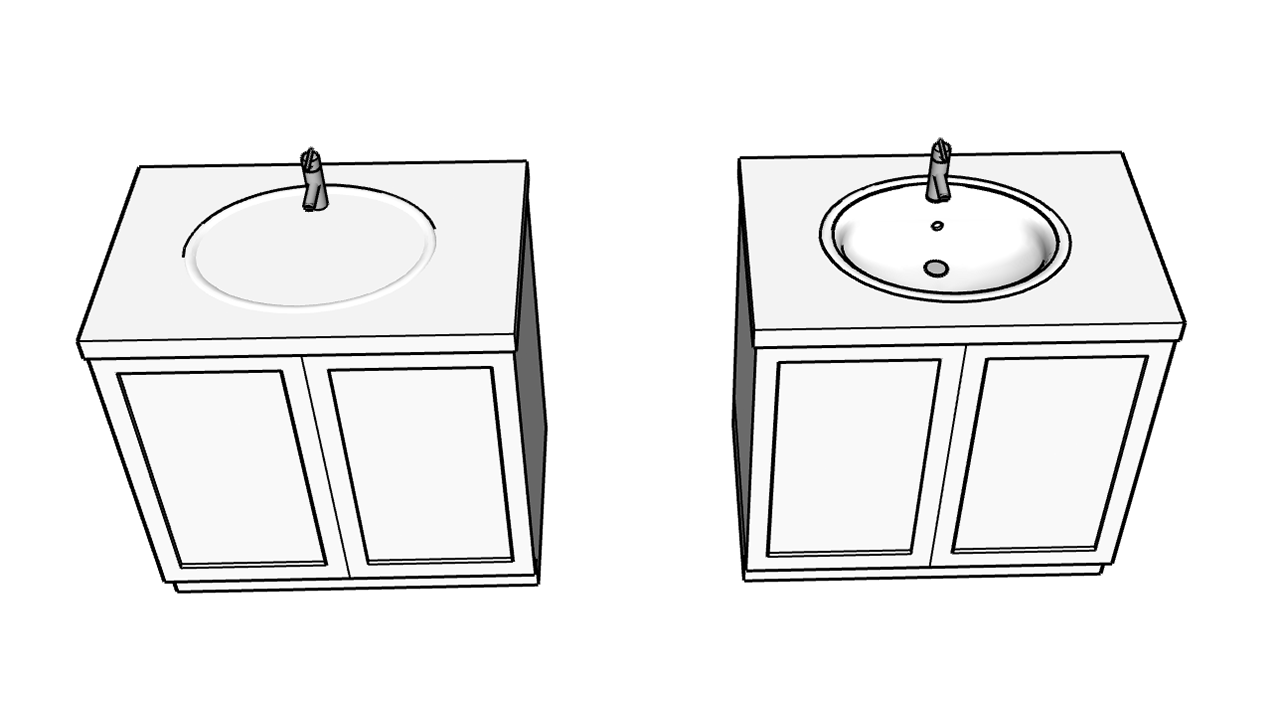

You are trying to cut an opening in a countertop that is the same shape as an oval sink, so that the sink bowl is visible. Which function would create this

JointPushPull

Circle tool and Push/Pull

Intersect Faces with Model

Reverse Faces and Delete

Option A

Option B

Option C

Option D

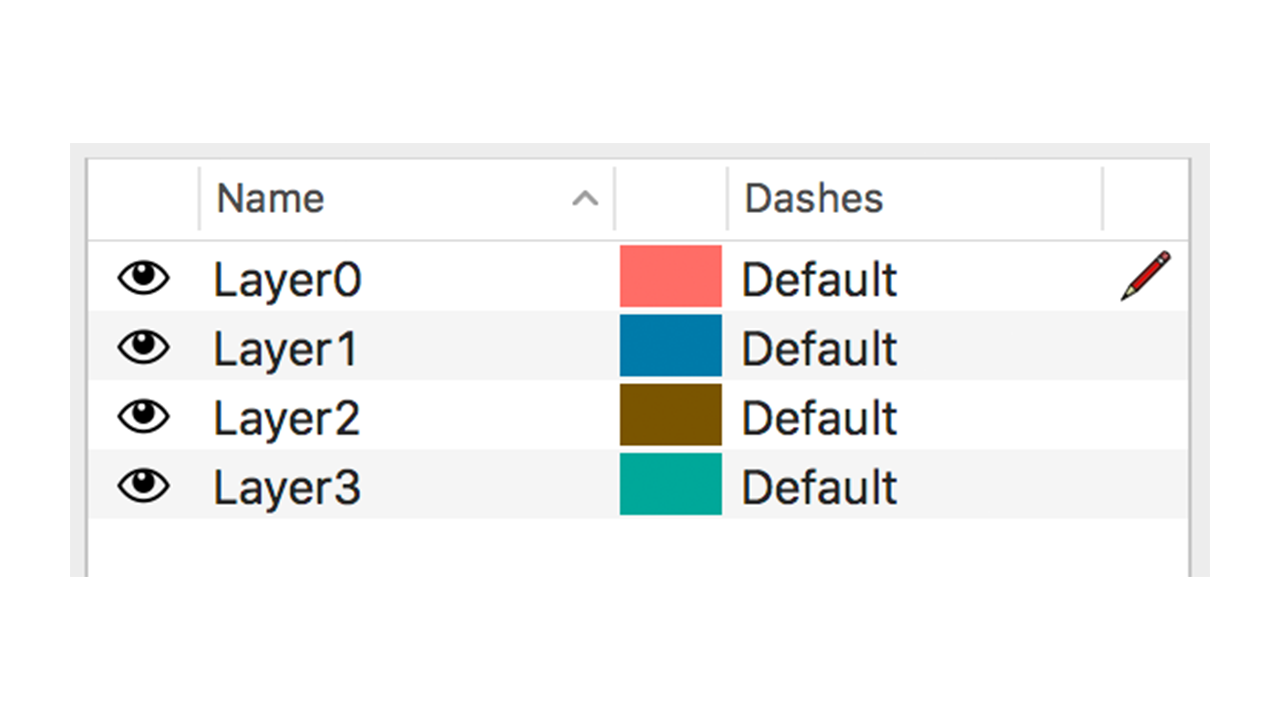

What purpose does moving the pencil icon in the Layers window serve

to edit an active group

to draw lines within a group

to show geometry on the layer

to change the active layer

Option A

Option B

Option C

Option D

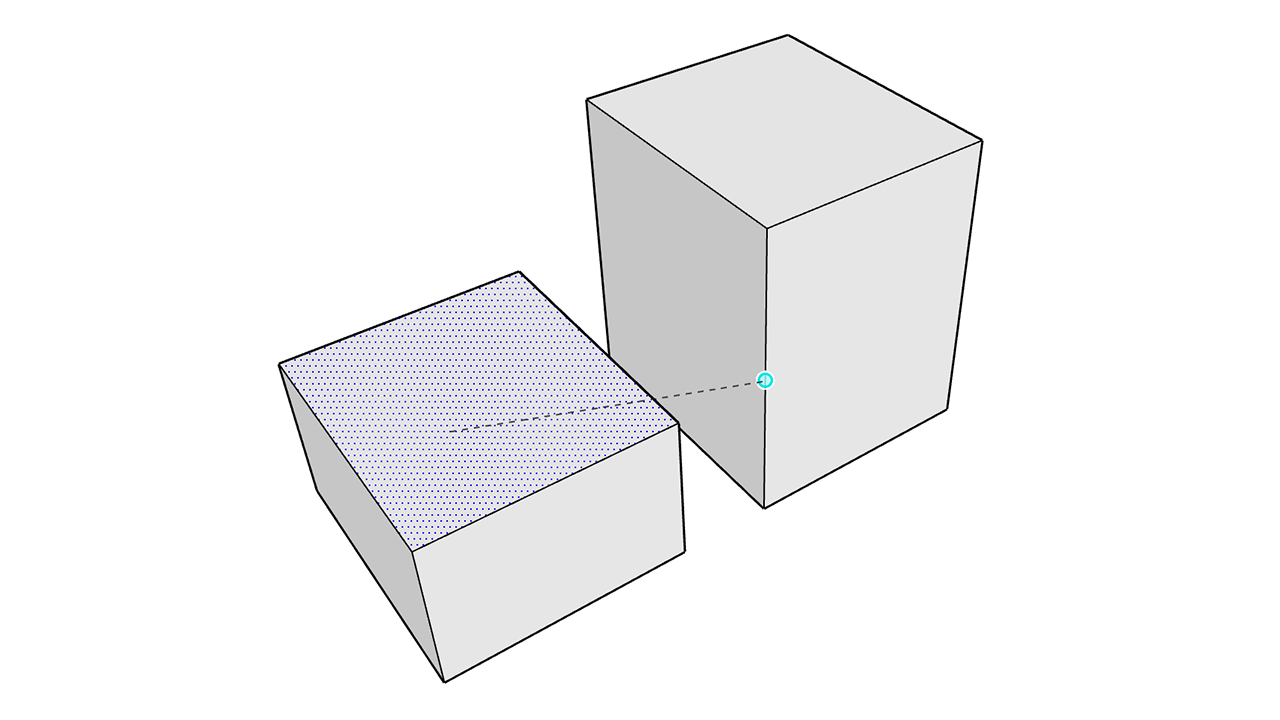

What action is being demonstrated in this image?

offset

rise

pull

inference

Option A

Option B

Option C

Option D

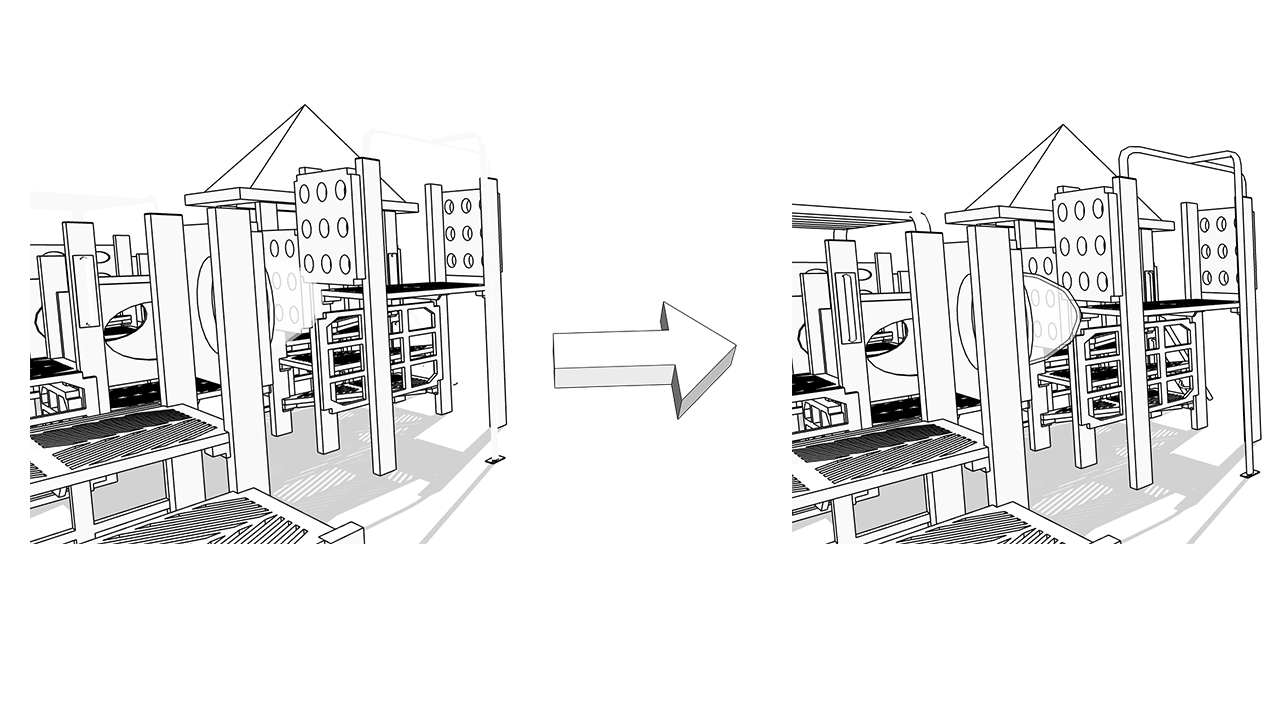

The drawing on the left has a hidden line style selected, but some of the information seems lost. The drawing on the right has the same style, but seems to be showing all geometry. What setting was changed to fix this?

In the Styles window, select the Edit tab, click the Edges icon, and select the Back Edges option.

In the Styles window, select the Edit tab, click the Edges icon, and select the Edges option.

In the Styles window, select the Edit tab, click the Edges icon, and select the Profiles option.

In the Styles window, select the Edit tab, click the Edges icon, and select the Depth Cue option.

Option A

Option B

Option C

Option D

What tools would you use to create accurate shadows in a 3D building model?

GLOBAL FINDER AND SHADOW SETTINGS

GEOLOCATION AND SHADOW SETTINGS

LOCATE AND SUN SHADING

MAP FINDER AND SUN SETTINGS

Where can you purge your model of unneeded data?

SKETCHUP PREFERENCES

PAGE SETUP

DOCUMENT SETUP

MODEL INFO

Which arrow key allows you to toggle between parallel and perpendicular (magenta) inference directions?

UP ARROW

RIGHT ARROW

LEFT ARROW

DOWN ARROW

Where can you quickly find helpful hints and tricks while using tools?

STATUS BAR

HELP MENU

YELLOW DIALOG BOX

MEASUREMENTS BOX

Which method creates a perpendicular view of a section cut?

CLICK VIEW > SECTION PLANE DIRECT.

RIGHT-CLICK THE SECTION PLANE AND SELECT ORBIT TO DIRECT VIEW.

RIGHT-CLICK THE SECTION PLANE AND SELECT ALIGN VIEW.

ORBIT AND PAN THROUGH YOUR MODEL UNTIL YOU SEE THE CORRECT VIEW.

Which of these is NOT a way to create a copy in SketchUp?

USING THE MOVE TOOL AND PRESSING CTRL (OPTION)

USING THE SELECT TOOL, USING THE ROTATE TOOL, AND PRESSING CTRL (OPTION)

USING THE COPY TOOL

SELECTING EDIT > COPY AND EDIT > PASTE

What does dragging a selection window around entities from left to right do?

IT DESELECTS ANY PRESELECTED ENTITIES.

IT SELECTS ENTITIES THAT ARE ENTIRELY CONTAINED IN THE SELECTION BOX.

IT SELECTS ANYTHING THE SELECTION BOX TOUCHES.

IT CAUSES SELECTED ENTITIES TO TURN FROM BLUE TO YELLOW.

Which action keeps two edges from "sticking" together?

GROUPING

DRAWING PERPENDICULAR

AVOIDING EDGES THAT TOUCH

INTERSECTING

Which tool allows you to scale an edge to a new size that you specify by typing in the desired measurement?

TAPE MEASURE

PROTRACTOR

SCALE

RIGHT-CLICK IN THE DRAWING WINDOW, OR ON A GROUP OR COMPONENT, SELECT MEASURE FROM CONTEXT MENU, TYPE THE NEW VALUE, AND PRESS ENTER (RETURN).

When is it best to click in the Measurements box?

TO DELETE A MEASUREMENT

WHEN YOU WOULD LIKE TO EDIT A MEASUREMENT

THERE IS NEVER A NEED TO CLICK IN THE MEASUREMENTS BOX.

TO START A NEW MEASUREMENT

What do layers control?

SEPARATING ENTITIES

STACKING GROUPS

GROUPING

VISIBILITY

How do you invert a selection?

WHILE ENTITIES ARE SELECTED, PRESS CTRL+SHIFT (COMMAND+SHIFT).

SELECT ENTITIES, RIGHT-CLICK, AND SELECT INVERT SELECTION.

WHILE ENTITIES ARE SELECTED, PRESS CTRL+SHIFT+I (COMMAND+SHIFT+I).

WHILE ENTITIES ARE SELECTED, PRESS SHIFT+I.

How do you efficiently select all instances of a component in the model?

USING THE SELECT TOOL, HOLD DOWN CTRL (OPTION) AND CLICK EACH COMPONENT IN THE DRAWING WINDOW.

RIGHT-CLICK THE COMPONENT IN THE COMPONENTS WINDOW AND SELECT SELECT INSTANCES FROM THE CONTEXT MENU.

RIGHT-CLICK THE COMPONENT IN THE DRAWING WINDOW AND SELECT SELECT INSTANCES FROM THE CONTEXT MENU.

SELECT THE COMPONENT IN THE DRAWING WINDOW AND THEN SELECT EDIT > SELECT > ALL INSTANCES FROM THE MENU.

Which window allows you to organize multiple groups and components of the same categories?

LAYERS

COMPONENTS

STYLES

MATERIALS

When editing a texture's position by selecting a single texture-mapped face and selecting Texture > Position from the context menu, four colored pins appear. What does the green pin allow you to do with the texture relative to its mapped face?

MOVE THE TEXTURE.

SCALE AND/OR SHEAR THE TEXTURE.

DISTORT THE TEXTURE.

SCALE AND/OR ROTATE THE TEXTURE.

You have created a 3D model and are concerned that some of the edges that are intended to be aligned with the axis are not. How can you check this?

CLICK VIEW > EDGE STYLE > BY AXIS.

CLICK STYLES > EDGES > COLOR > BY AXIS.

CLICK CAMERA > PARALLEL PROJECTION.

CLICK CAMERA > STANDARD VIEWS > BY AXIS.

You are creating a model of a small object for 3D printing. Because of its small size, you run into modeling issues. What is a possible fix for this?

SCALE YOUR MODEL UP (100X, FOR EXAMPLE), BUILD IT, AND THEN SCALE IT BACK DOWN TO THE SAME RATIO BEFORE PRINTING.

WORK ON THE MODEL IN A FILE WITHOUT ANY OTHER ENTITIES IN IT SO THAT THE FILE SIZE STAYS SMALL.

USE ZOOM EXTENTS TO SEE YOUR MODEL MORE FULLY.

BE SURE NOT TO CLICK AND DRAG YOUR MOUSE WHILE DRAWING.

While using the Match Photo function, you can get a better view of the image you are matching by doing what?

PAN AND ORBIT

ORBIT AND ZOOM

ZOOM AND WALK

PAN AND ZOOM

How can you create a component that will always face your view?

WHEN CREATING THE COMPONENT, SELECT ALWAYS FACE CAMERA IN THE DIALOG BOX.

RIGHT-CLICK THE COMPONENT AFTER CREATING IT AND SELECT ALWAYS FACE CAMERA FROM THE MENU.

WHEN CREATING THE COMPONENT, SELECT FACE ME IN THE DIALOG BOX.

RIGHT-CLICK THE COMPONENT AFTER CREATING IT AND SELECT FACE ME FROM THE MENU.

You are drawing a line intended to be 4' long and accidentally input 4". What is the most efficient way to correct the action?

USE THE ERASER TOOL TO ERASE THE LINE AND REDRAW THE LINE AT 4'.

DRAW A NEW LINE AT 4' LONG DIRECTLY OVER THE OLD 4" LINE.

OVERWRITE THE PREVIOUS MEASUREMENT BY TYPING 4' AND PRESSING ENTER (RETURN).

UNDO THE ACTION (CTRL+Z OR COMMAND+Z) AND REDRAW THE LINE AT 4'.

Which action does not erase an existing face?

SELECT THE FACE, RIGHT-CLICK, AND SELECT ERASE.

SELECT THE FACE AND PRESS THE DELETE KEY.

CLICK THE FACE WITH THE ERASER TOOL.

CLICK ONE OF THE FACE'S BOUNDING EDGES WITH THE ERASER TOOL.

You offset one face by 3". You then double-click another face. What happens to the second face?

THE SECOND FACE WILL OFFSET DOUBLE THE FIRST FACE AT 6".

THE SECOND FACE WILL OFFSET HALF THE DISTANCE OF THE FIRST FACE AT 1.5".

NOTHING WILL HAPPEN.

THE SECOND FACE WILL OFFSET AT 3".

You want to exclude some scenes from an animation. How can you do this?

RIGHT-CLICK THE SCENE TAB AND CLEAR INCLUDE IN ANIMATION.

SELECT FILE > EXPORT > ANIMATION > CHECK ALL APPLICABLE SCENES.

SELECT VIEW > ANIMATION > SETTINGS > CHECK ALL APPLICABLE SCENES.

IN THE SCENES WINDOW, CLICK THE SCENE YOU WANT TO EXCLUDE. THEN CLICK THE SHOW DETAILS ICON AND CLEAR INCLUDE IN ANIMATION

What tool can you use to create a flat surface on a sloped terrain?

THE SITE TOOL

THE TOPO TOOL

THE PLOT TOOL

THE STAMP TOOL

Which of these actions does NOT erase an existing face?

CLICK ONE OF THE FACE'S BOUNDING EDGES WITH THE ERASER TOOL.

SELECT THE FACE, RIGHT-CLICK, AND SELECT ERASE.

SELECT THE FACE AND PRESS THE DELETE KEY.

CLICK THE FACE WITH THE ERASER TOOL.

Which of these actions checks the length of an edge?

RIGHT-CLICK AN EDGE AND SELECT LENGTH.

USE THE TAPE MEASURE TOOL TO HOVER OVER AN EDGE AND DISPLAY THE LENGTH.

USE THE TAPE MEASURE TOOL TO CLICK AN ENDPOINT OF AN EDGE AND DISPLAY THE LENGTH.

USE THE SELECT TOOL TO CLICK AN EDGE AND DISPLAY THE LENGTH IN THE MEASUREMENTS BOX.

To draw a 10' 6" by 5' 3" rectangle, which of the following measurements could you type while drawing?

10' 6 X 5' 3

10' 6" X 5' 3"

10' 6" BY 5' 3"

10'6, 5'3

What happens when you triple-click a face?

NOTHING. A TRIPLE-CLICK IS NOT A VALID ACTION IN SKETCHUP.

THE FACE IS SELECTED.

THE FACE AND ITS BOUNDING EDGES ARE SELECTED.

THE FACE AND ANY CONNECTED GEOMETRY ARE SELECTED.
